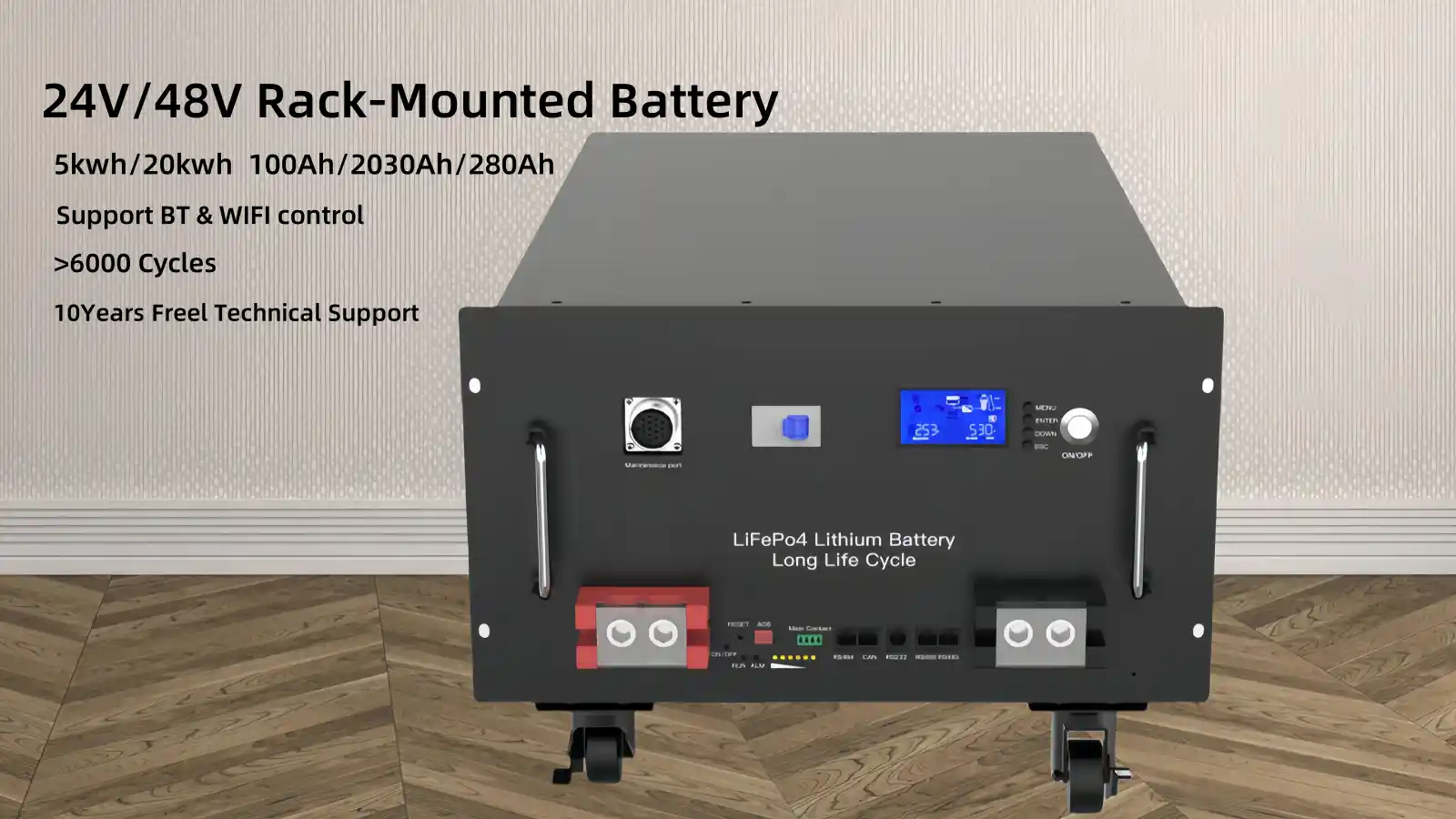

DIY 48V 280Ah 15kWh LiFePO4 Rack-Mounted Battery – Solar Energy Storage
Thumbnail 2 Thumbnail 3 Thumbnail 4

DIY 48V 280Ah 15kWh LiFePO4 Rack-Mounted Battery – Solar Energy Storage

  • >80000 Cycle
  • 2A Active Equalization
  • Supports Max 16 Units in Parallel
  • Compatible with All Mainstream Hybrid Inverters
  • 10 years warranty period
  • 24 hour rapid response
Email: ceo@hxcells.com WhatsApp: +8615889750570
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3

15kwh 280ah Lifepo4 Battery Features and Benefits
High Capacity and High Efficiency: With a capacity of 280Ah lithium ion batteries, this system is able to store a large amount of energy, ensuring that you have enough backup power even when the solar panels are not generating electricity on cloudy days or at night. The 48V configuration ensures compatibility with a wide range of inverters, optimizing the overall efficiency of your solar installation.

Long Life: Using advanced lithium battery technology, the 48V 280Ah 10-15kwh Lithium Ion Phosphate Iron Lifepo4 Solar Battery energy storage system has a longer service life compared to traditional batteries. Lifepo4 lithium-ion batteries typically have a service life of more than 10 years, with little chance of performance degradation over time. This means lower maintenance costs and fewer replacements, making it a cost-effective solution in the long run.

Space-saving Design: The rack-mounted design allows for easy installation in a variety of environments, whether on the wall or on the floor. The compact structure helps save space while still providing the necessary energy storage capacity. It is a practical choice for homeowners with limited space or businesses that need to optimize space utilization.

Scalability: One of the outstanding features of this energy storage system is its scalability. If your energy needs grow over time, additional racks or modules can be added to increase the capacity of the system. This makes the 48V 280Ah Solar Rack System an adaptable solution, whether you are looking for a small backup system or a large energy storage solution.

Environmentally friendly: By relying on clean, renewable solar energy, the system helps reduce carbon footprint and dependence on fossil fuels. It is an environmentally friendly choice that supports sustainable living and helps businesses and homeowners achieve green energy goals.

Safety and durability: Designed with safety in mind, the 48V 280Ah Solar Rack Energy Storage System is equipped with an integrated battery management system (BMS) to monitor temperature, voltage, and charging cycles. This ensures the system operates safely, efficiently, and optimally. In addition, the system is designed to withstand harsh environmental conditions, with durability and reliability for long-term use.

48v 100ah 200ah Rack-mounted Solar LiFePO4 battery for solar off-grid system 48v
Rack-Mounted Bms Lifepo4 16S 48V Lithium Battery 48V 280Ah Home Energy Battery

DIY 48V Lifepo4 battery precautions
DC breaker
✖ Short Circuit Hazard
✖ Overheating overload
2A active equalizer Guaranteed voltage consistency
WIFI Bluetooth Booster Stabilize Bluetooth signal
Real-Time Display Function Directly switchable communication protocols
Dual Port Reduces risk of damage and facilitates parallel connection
Pre-assembled components Easy and efficient installation

Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt /
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc

Stable and safe packaging
Packing: carton + wooden box + pallet or customized
We usually provide DDP CIF sea shipping for 48V-51.2V 304ah battery pack.
Use wooden box packaging to ensure safe transportation.
Contact us for more shipping details.
DDP shipment transportation
Completed certificates: We have completed shipping certificates, such as MSDS, ROHS, CE, UN.38.3 and cargo safety transportation certification, etc.
If you have your own shipping forwarding, we can also arrange it. Just send us your forwarding address and phone number, and we will send the goods to your forwarding address.
Precautions：
Do not expose the battery to direct sunlight or high humidity.
It is forbidden to disassemble or modify the internal components of the battery without authorization.
When not in use for a long time, charge the battery to 50%-60% and store it in a dry and ventilated place.
If any abnormality occurs (such as leakage, overheating, etc.), please disconnect the device immediately and contact after-sales support.


Leave me message

Item
Specification
Conditions

Nominal
Voltage
48V

25℃,0.2C
Capacity
280Ah
Module weight
130Kg
±0.5Kg

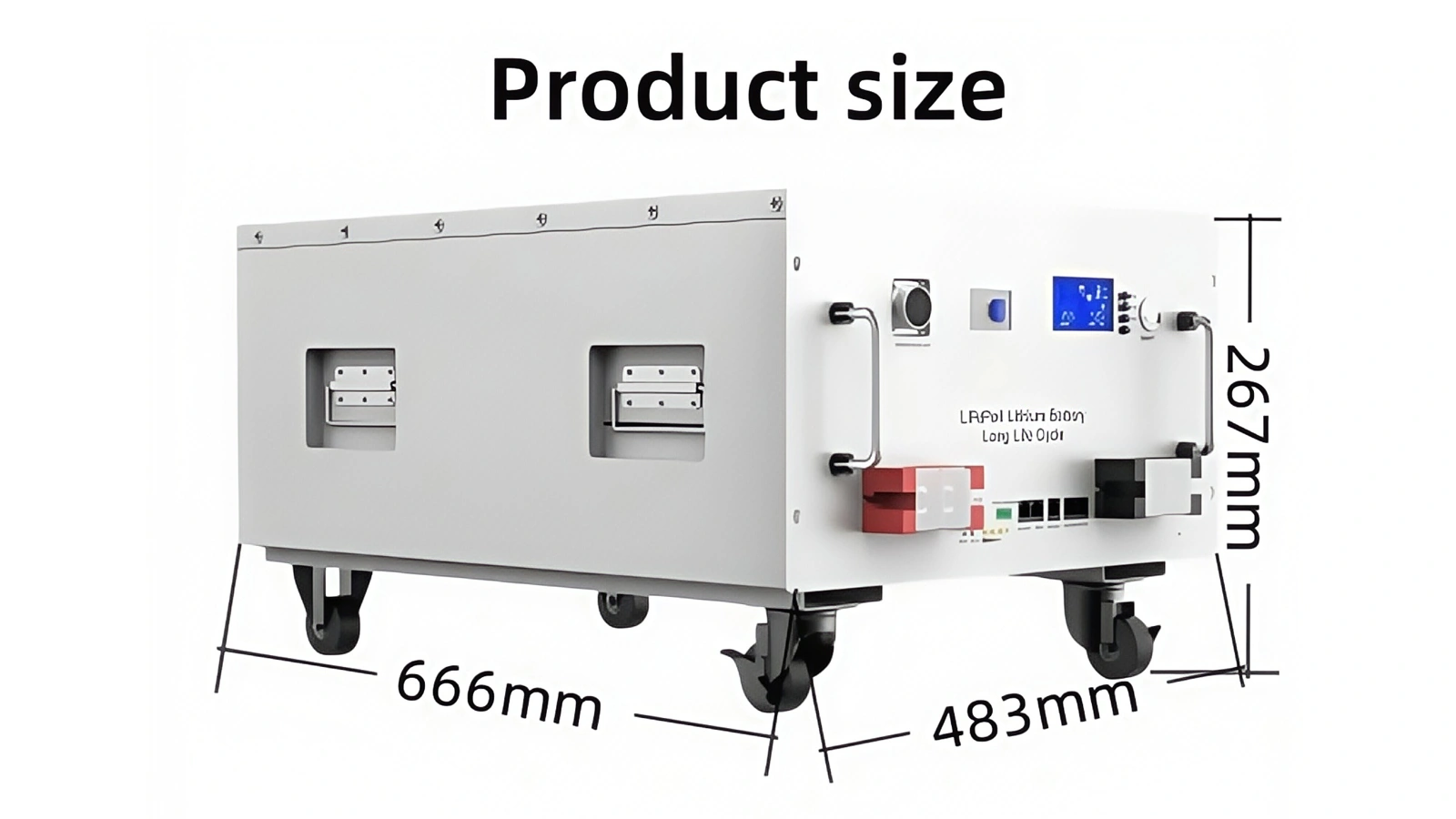

Dimensions(W*D*H), mm
666*483*267mm
±2mm


Operating parameters
Charging Voltage
52.5V~54.0V

Discharging Voltage
40V

Max Charging current
100Ah

Max Discharging current
200Ah


Temperature
Charge range
0℃~45℃

Discharge range
-20℃~55℃

Storage range
-20℃~45℃


Service life
Design life
>15years

Cycle life
>6000 times


Leave me message

Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.

Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.

Q3. What about the lead time?
A. Sample 5-7 days, mass production time 3-5 weeks depending on order quantity.

Q4. Do you have any MOQ limit?
A. Yes, but low MOQ, 1~10pcs sample order is available.

Q5. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Bigger order shipped by air or by sea.

Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quotation. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We produce your order.

Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.

Q8. How about after-sales service?
A. We will provide you with a 3 years warranty. If there are any problems, please let us know and we will provide you with a
positive solution.

Please feel free to contact us for Price, Packing, Shipping and Discount.
